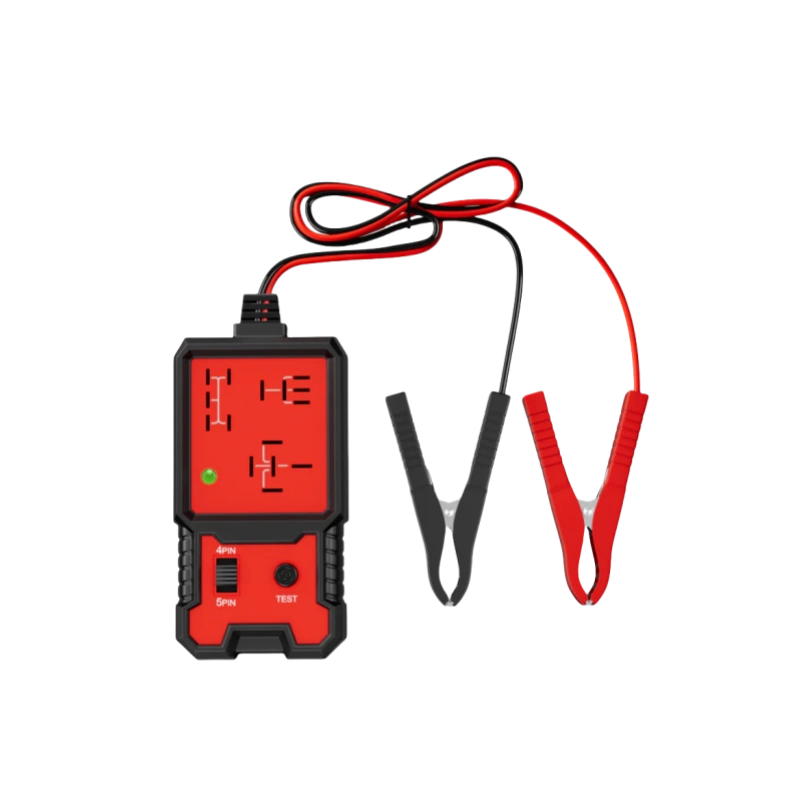

Automotive Relay Tester for 12V, 4-Pin and 5-Pin Relays with LED Indicator

Product Description:

• 12-Volt Automotive Relay Tester
  • This automotive relay tester is designed for 4-pin and 5-pin relays, streamlining the diagnosis and testing process. It saves valuable time and effort with its intuitive design and clear LED indicators, making it easy to identify relay operation issues and ensuring faster troubleshooting and repairs.
• Accurate Simulation of Relay Conditions
  • This relay tester accurately simulates the conditions relays experience in a real automotive environment.
• Reliable Verification Method
  • It provides a reliable method for verifying relay functionality and performance, confirming proper coil activation and contact switching.

• Elimination of Guesswork
  • By doing so, it eliminates guesswork and ensures that replaced relays are operating correctly.

• Compatibility with Common Relay Types
  • This tester is compatible with both 4-pin and 5-pin relays commonly used in automotive applications.

• Universal Design Benefits
  • Its universal design eliminates the need for multiple testers, simplifying your tool inventory and streamlining your workflow.
• Clear Visual Feedback
  • The integrated LED indicators provide clear visual feedback on relay operations.
• Quick Diagnosis
  • You can easily identify coil activation and contact switching, allowing quick and accurate diagnosis of relay issues.
• Enhanced Troubleshooting Efficiency
  • This visual confirmation enhances troubleshooting efficiency and reduces misdiagnosis.
• Durable Construction
  • This relay tester is made from high-quality materials with a robust design, ensuring long-lasting performance in demanding environments.
• Resistance to Damage
  • It is resistant to shocks, vibrations, and temperature fluctuations.
• Reliable Operation
  • Thus, it ensures reliable operation for years to come.

Product Specifications:

• Relay: 4 Pins / 5 Pins
• Voltage: 11 V - 15 V
• Size: 4.33 in × 2.29 in
• Wire Length: 35.43 in

TIPS

• Battery Voltage: Always use a 12 V car battery with a voltage between 11 V and 15 V.
• Coil Resistance: This tester is best suited for relays with a coil resistance above 20 Ω.
• Safe Handling: Use caution when working with electrical components and avoid touching bare wires or terminals while the tester is powered on.
• Visual Inspection: Before using the tester, visually inspect the relay for any signs of damage or corrosion.
• Troubleshooting: If the RED LED indicates an issue, check the relay's pin configuration and ensure proper connections to the tester. You may need to replace the relay if faulty.
